VS-180NQ045PbF

High Performance Schottky Rectifiers

VS-180NQ045PbF Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* Designed and qualified for industrial level

* Material categorization: For definitions of compliance please see

VS-180NQ045PbF General Description

The VS-180NQ.. high current Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in high current switching power supplies, plating .

VS-180NQ045PbF Datasheet (132.49 KB)

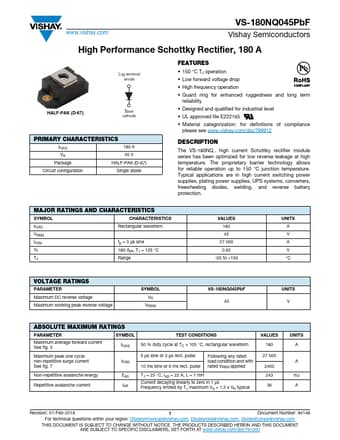

Preview of VS-180NQ045PbF PDF

Datasheet Details

Part number:

VS-180NQ045PbF

Manufacturer:

Vishay ↗

File Size:

132.49 KB

Description:

High performance schottky rectifiers.
www.vishay.com VS-180NQ045PbF Vishay Semiconductors High Performance Schottky Rectifier, 180 A Lug terminal anode HALF-PAK (D-67) Base cathode P.
