VS-1N5819-M3, VS-1N5819 Schottky Rectifier

VS-1N5819-M3 Description

www.vishay.com VS-1N5819, VS-1N5819-M3 Vishay Semiconductors Schottky Rectifier, 1.0 A DO-204AL Cathode Anode PRODUCT SUMMARY Package IF(AV) VR .
The VS-1N5819 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-1N5819-M3 Features

* Low profile, axial leaded outline
* High frequency operation
* Very low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term relia

VS-1N5819-M3 Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATIN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-1N5819-M3, VS-1N5819. Please refer to the document for exact specifications by model.

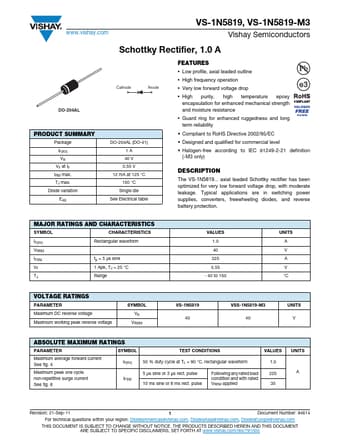

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-1N5819-M3, VS-1N5819
Manufacturer
Vishay ↗
File Size
111.68 KB
Datasheet
VS-1N5819-Vishay.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-1N5819-M3, VS-1N5819.
Please refer to the document for exact specifications by model.
