VS-1N5820-M3, VS-1N5820 Schottky Rectifier

VS-1N5820-M3 Description

www.vishay.com VS-1N5820, VS-1N5820-M3 Vishay Semiconductors Schottky Rectifier, 3.0 A C-16 Cathode Anode PRODUCT SUMMARY Package IF(AV) VR VF a.
The VS-1N5820 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-1N5820-M3 Features

* Low profile, axial leaded outline
* High frequency operation
* Very low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term relia

VS-1N5820-M3 Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-1N5820-M3, VS-1N5820. Please refer to the document for exact specifications by model.

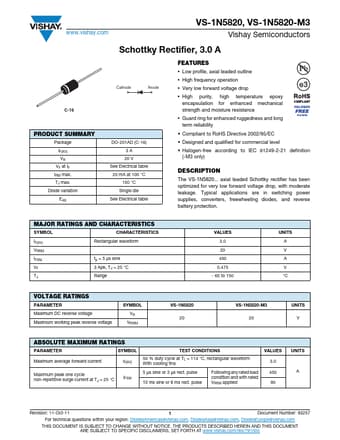

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-1N5820-M3, VS-1N5820
Manufacturer
Vishay ↗
File Size
112.78 KB
Datasheet
VS-1N5820-Vishay.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-1N5820-M3, VS-1N5820.
Please refer to the document for exact specifications by model.
