VS-20CTQ035-1PbF, VS-20CTQ035SPbF, Schottky Rectifier

VS-20CTQSPbF, VS-20CTQ-1PbF Series Vishay High Power Products Schottky Rectifier, 2 x 10 A VS-20CTQSPbF VS-20CTQ-1PbF Base common cathode 2 Base c.
The VS-20CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

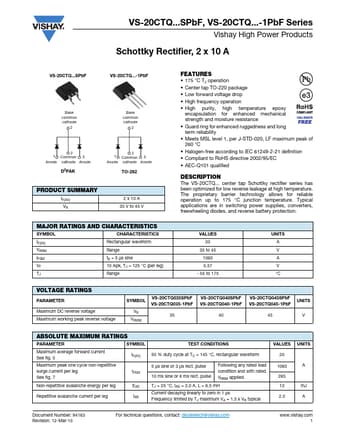

datasheet Preview Page 1 from Datasheet4u.com

VS-20CTQ035SPbF-Vishay.pdf

VS-20CTQ035-1PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-20CTQ035-1PbF, VS-20CTQ035SPbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-20CTQ035-1PbF, VS-20CTQ035SPbF

Manufacturer:

Vishay ↗

File Size:

170.87 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-20CTQ035-1PbF, VS-20CTQ035SPbF.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Center tap TO-220 package
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness an

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. VALUES 20 35 to 45 1060 0.57 - 55 to 175 UNITS A V A V °C VOLTAGE RATINGS PARAMETER Maximum DC reverse voltage Maximum working peak reverse voltage SYMBOL VR VRWM VS-20CTQ035SPbF VS-20CTQ035-1PbF 3
