VS-20CTQ035PbF Schottky Rectifier

VS-20CTQ035PbF Description

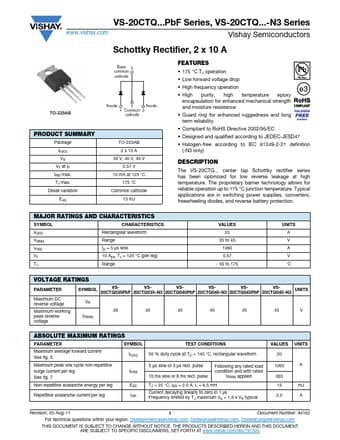

VS-20CTQPbF Series, VS-20CTQ-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 10 A Base 2 common cathode TO-220AB Anode 2.
The VS-20CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-20CTQ035PbF Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

VS-20CTQ035PbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM Range IFSM tp = 5 μs sine VF 10 Apk, TJ = 125 °C (per leg) TJ Range VALUES 20 35 to 45 1060 0.57 - 55
