VS-20ETS12S-M3

High Voltage Surface Mount Input Rectifier Diode

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Vishay Semiconductors VS-20ETS12S-M3 DIODE STANDARD 1200V 20A TO263AB DigiKey 2229 5000 units
$0.89

VS-20ETS12S-M3 Datasheet (167.12 KB)

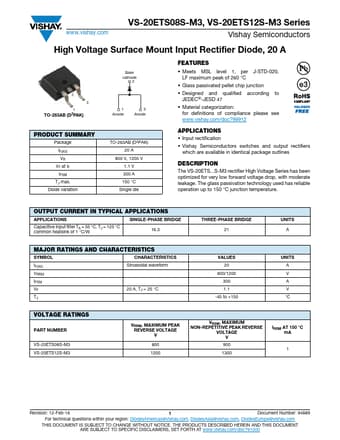

Preview of VS-20ETS12S-M3 PDF Datasheet

Datasheet Details

Part number:

VS-20ETS12S-M3

Manufacturer:

Vishay ↗

File Size:

167.12 KB

Description:

High voltage surface mount input rectifier diode

VS-20ETS12S-M3 Features

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

* Glass passivated pellet chip junction

* Designed and qualified according to JEDEC®-JESD 47

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS

VS-20ETS12S-M3 General Description

The VS-20ETSS-M3 rectifier High Voltage Series has been optimized for very low forward voltage drop, with moderate leakage. The glass passivation technology used has reliable operation up to 150 °C junction temperature. OUTPUT CURRENT IN.
