VS-20ETS16-M3

Input Rectifier Diode

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Vishay Semiconductors VS-20ETS16-M3 DIODE STANDARD 1600V 20A TO2203 DigiKey 7300 2000 units
$1.27

VS-20ETS16-M3 Datasheet (160.94 KB)

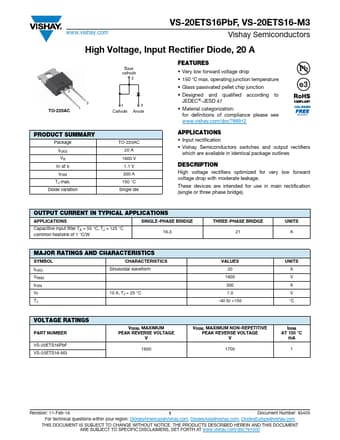

Preview of VS-20ETS16-M3 PDF

Datasheet Details

Part number:

VS-20ETS16-M3

Manufacturer:

Vishay ↗

File Size:

160.94 KB

Description:

Input rectifier diode.
www.vishay.com VS-20ETS16PbF, VS-20ETS16-M3 Vishay Semiconductors High Voltage, Input Rectifier Diode, 20 A 2 TO-220AC 3 1 Base cathode 2 13 Cat.

VS-20ETS16-M3 Features

* Very low forward voltage drop

* 150 °C max. operating junction temperature

* Glass passivated pellet chip junction

* Designed and qualified according to JEDEC®-JESD 47

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99

VS-20ETS16-M3 General Description

High voltage rectifiers optimized for very low forward voltage drop with moderate leakage. These devices are intended for use in main rectification (single or three phase bridge). OUTPUT CURRENT IN TYPICAL APPLICATIONS APPLICATIONS SINGLE-PHASE BRIDGE .
