VS-25TTS16SPbF - Phase Control SCR

Vishay

📥 Download Datasheet

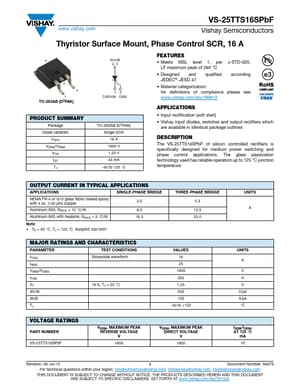

VS-25TTS16SPbF Datasheet Preview — Preview of VS-25TTS16SPbF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VS-25TTS16SPbF
Manufacturer	Vishay ↗
File Size	177.90 KB
Description	Phase Control SCR
Datasheet	VS-25TTS16SPbF-Vishay.pdf

VS-25TTS16SPbF Product details

Description

The VS-25TTS16SPbF of silicon controlled rectifiers is specifically designed for medium power switching and phase control applications.

Features

Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Designed and JEDEC®-JESD 47 qualified according.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
