VS-30CTQ035-1HM3, VS-30CTQ035SHM3 - High Performance Schottky Rectifier

Vishay

📥 Download Datasheet

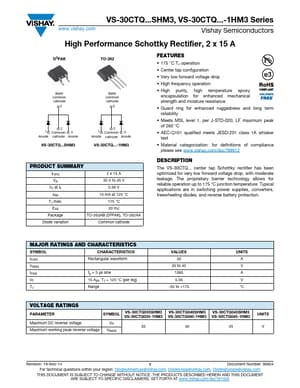

VS-30CTQ035-1HM3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-30CTQ035-1HM3, VS-30CTQ035SHM3. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VS-30CTQ035-1HM3, VS-30CTQ035SHM3
Manufacturer	Vishay ↗
File Size	190.84 KB
Description	High Performance Schottky Rectifier
Datasheet	VS-30CTQ035SHM3-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-30CTQ035-1HM3, VS-30CTQ035SHM3. Please refer to the document for exact specifications by model.

VS-30CTQ035-1HM3 Product details

Features

175 °C TJ operation.
Center tap configuration.
Very low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified meets JESD-201 class 1A whisker test.
Material categorization: f.
