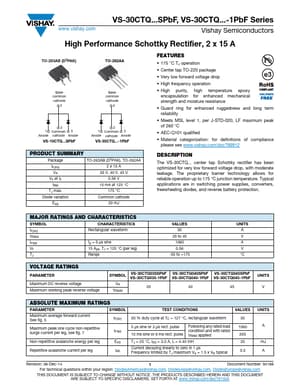

VS-30CTQ035SPbF High Performance Schottky Rectifier

www.vishay.com VS-30CTQSPbF, VS-30CTQ-1PbF Series Vishay Semiconductors High Performance Schottky Rectifier, 2 x 15 A TO-263AB (D2PAK) TO-262AA B.
The VS-30CTQ center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-30CTQ035SPbF-Vishay.pdf

VS-30CTQ035SPbF Datasheet Preview — Preview of VS-30CTQ035SPbF PDF

Datasheet Details

Part number:

VS-30CTQ035SPbF

Manufacturer:

Vishay ↗

File Size:

155.93 KB

Description:

High Performance Schottky Rectifier

Features

* 175 °C TJ operation
* Center tap TO-220 package
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedne

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.   MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 15 Apk, TJ = 125 °C (per leg) Range VALUES 30 35 to 45 1060 0.56 -55 to +175
