VS-30CTQ050-1PbF, VS-30CTQ050SPbF Datasheet - Vishay

VS-30CTQ050-1PbF Schottky Rectifier

This center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, a.

VS-30CTQ050-1PbF Features

* 150 °C TJ operation

* Center tap configuration

* Very low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggednes

VS-30CTQ050SPbF-Vishay.pdf

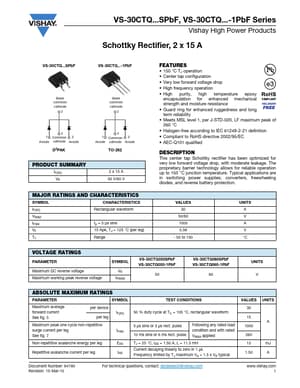

VS-30CTQ050-1PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-30CTQ050-1PbF, VS-30CTQ050SPbF. Please refer to the document for exact specifications by model.

VS-30CTQ050-1PbF Datasheet Preview Page 2

VS-30CTQ050-1PbF Datasheet Preview Page 3

Datasheet Details

Part number:

VS-30CTQ050-1PbF, VS-30CTQ050SPbF

Manufacturer:

Vishay ↗

File Size:

120.67 KB

Description:

Schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: VS-30CTQ050-1PbF, VS-30CTQ050SPbF.
Please refer to the document for exact specifications by model.
