VS-30WQ06FNPbF Datasheet - Vishay

Schottky Rectifier

VS-30WQ06FNPbF Features

* Popular D-PAK outline

* Small foot print, surface mountable

* Low forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* Compliant to RoHS Directive 2002/95/EC

* Meets MSL level 1, per

VS-30WQ06FNPbF General Description

The VS-30WQ06FNPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. .

VS-30WQ06FNPbF Datasheet (134.42 KB)

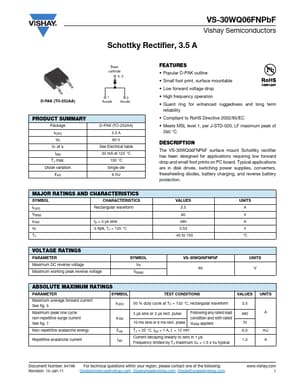

Preview of VS-30WQ06FNPbF PDF

Datasheet Details

Part number:

VS-30WQ06FNPbF

Manufacturer:

Vishay ↗

File Size:

134.42 KB

Description:

Schottky rectifier.
VS-30WQ06FNPbF Vishay Semiconductors Schottky Rectifier, 3.5 A Base cathode 4, 2 D-PAK (TO-252AA) 1 Anode 3 Anode PRODUCT SUMMARY Package IF(AV) .
