VS-32CTQ025-N3

Schottky Rectifier

VS-32CTQ025-N3 Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and long term reliability

* Co

VS-32CTQ025-N3 General Description

The VS-32CTQ Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and revers.

VS-32CTQ025-N3 Datasheet (157.24 KB)

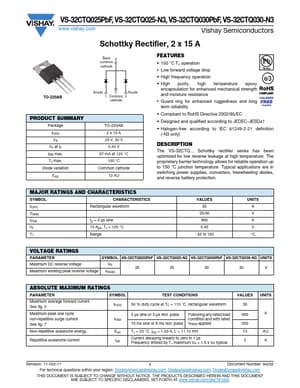

Preview of VS-32CTQ025-N3 PDF

Datasheet Details

Part number:

VS-32CTQ025-N3

Manufacturer:

Vishay ↗

File Size:

157.24 KB

Description:

Schottky rectifier.
VS-32CTQ025PbF, VS-32CTQ025-N3, VS-32CTQ030PbF, VS-32CTQ030-N3 www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base 2 common cat.
