VS-32CTQ025PbF Schottky Rectifier

VS-32CTQ025PbF Description

VS-32CTQ025PbF, VS-32CTQ025-N3, VS-32CTQ030PbF, VS-32CTQ030-N3 www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base 2 common cat.
The VS-32CTQ Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-32CTQ025PbF Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

VS-32CTQ025PbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 15 Apk, TJ = 125 °C TJ Range VALUES 30 25/30 900 0.40 - 55 to 150 UNITS A V A V

📥 Download Datasheet

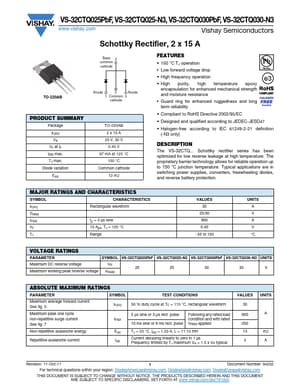

Preview of VS-32CTQ025PbF PDF
datasheet Preview Page 2 datasheet Preview Page 3
