VS-43CTQ080SPbF Schottky Rectifier

VS-43CTQ080SPbF Description

www.vishay.com VS-43CTQSPbF, VS-43CTQ-1PbF Series Vishay Semiconductors Schottky Rectifier, 2 x 20 A D2PAK TO-262 Base common cathode 2 Base com.
This center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-43CTQ080SPbF Features

* 175 °C TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and

VS-43CTQ080SPbF Applications

* are in switching power supplies, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform tp = 5 μs sine VF 20 Apk, TJ = 125 °C (per leg) TJ Range VALUES 40 80/100 850 0.67 - 55 to 175 UNITS A V A V °

📥 Download Datasheet

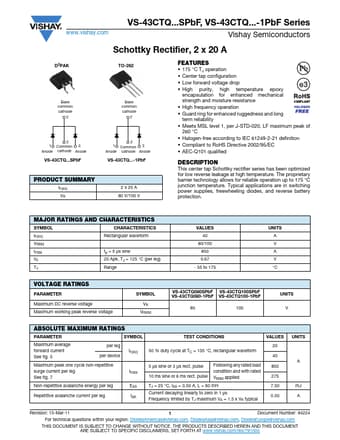

Preview of VS-43CTQ080SPbF PDF
datasheet Preview Page 2 datasheet Preview Page 3
