VS-4EVH02HM3 - Hyperfast Rectifier

Vishay

The VS-4EVH02HM3 by Vishay is a Hyperfast Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

VS-4EVH02HM3 Hyperfast Rectifier by Vishay - Datasheet Preview — Official preview page of the VS-4EVH02HM3 Hyperfast Rectifier datasheet (Vishay).

Datasheet Details

Part number	VS-4EVH02HM3
Manufacturer	Vishay
File Size	147.18 KB
Description	Hyperfast Rectifier
Datasheet	VS-4EVH02HM3-Vishay.pdf

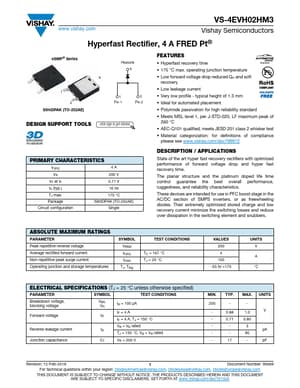

Additional preview pages of the VS-4EVH02HM3 datasheet.

VS-4EVH02HM3 Product details

Description

/ APPLICATIONS State of the art hyper fast recovery re

Features

Hyperfast recovery time Available.
175 °C max. operating junction temperature.
Low forward voltage drop reduced Qrr and soft recovery.
Low leakage current.
Very low profile - typical height of 1.3 mm.
Ideal for automated placement.
Polyimide passivation for high reliability standard.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified, meets JESD 201 class 2 whisker test.
