VS-80SQ030, Schottky Rectifier

www.vishay.com VS-80SQ Series, VS-80SQ-M3 Series Vishay Semiconductors Schottky Rectifier, 8 A DO-204AR Cathode Anode PRODUCT SUMMARY Package IF.
The VS-80SQ axial leaded Schottky rectifier series has been optimized for low reverse leakage at high temperature.

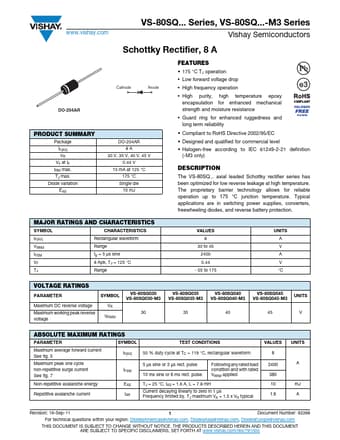

datasheet Preview Page 1 from Datasheet4u.com

VS-80SQ030-Vishay.pdf

VS-80SQ030 Datasheet Preview — Preview of VS-80SQ030 PDF

Datasheet Details

Part number:

VS-80SQ030

Manufacturer:

Vishay ↗

File Size:

129.72 KB

Description:

Schottky Rectifier

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform Range tp = 5 μs sine VF 8 Apk, TJ = 125 °C TJ Range VALUES 8 30 to 45 2400 0.44 - 55 to 175 UNITS
