VS-80SQ035, VS-80SQ030 - Schottky Rectifier

Name: VS-80SQ035
SKU: VS-80SQ035-948191

Vishay

The VS-80SQ035 by Vishay is a Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	VS-80SQ035, VS-80SQ030
Manufacturer	Vishay
File Size	129.72 KB
Description	Schottky Rectifier
Datasheet	VS-80SQ030-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-80SQ035, VS-80SQ030. Please refer to the document for exact specifications by model.

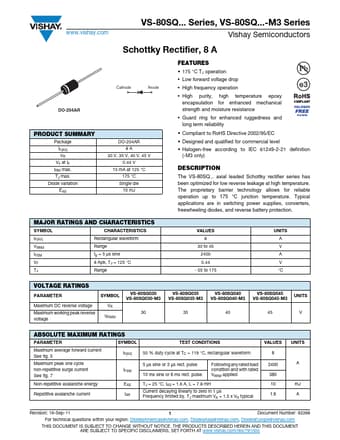

Additional preview pages of the VS-80SQ035 datasheet.

The VS-80SQ axial leaded Schottky rectifier series has been optimized for low reverse leakage at high temperature.

175 °C TJ operation.
Low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
Compliant to RoHS Directive 2002/95/EC.
Designed and qualified for commercial level.
Halogen-free according to IEC 61249-2-21 definition (-M3 only).
