VS-8TQ100-N3 Datasheet - Vishay

Schottky Rectifier

VS-8TQ100-N3 Features

* 175 °C TJ operation

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and long term reliability

* Co

VS-8TQ100-N3 General Description

The VS-8TQ Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse .

VS-8TQ100-N3 Datasheet (172.01 KB)

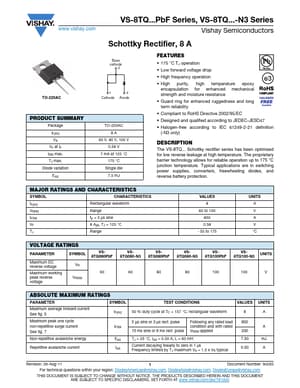

Preview of VS-8TQ100-N3 PDF

Datasheet Details

Part number:

VS-8TQ100-N3

Manufacturer:

Vishay ↗

File Size:

172.01 KB

Description:

Schottky rectifier.
www.vishay.com VS-8TQPbF Series, VS-8TQ-N3 Series Vishay Semiconductors Schottky Rectifier, 8 A Base cathode 2 TO-220AC 13 Cathode Anode PRODUCT.
