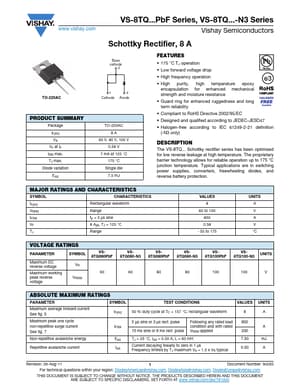

VS-8TQ100PbF, VS-8TQ060PbF Schottky Rectifier

www.vishay.com VS-8TQPbF Series, VS-8TQ-N3 Series Vishay Semiconductors Schottky Rectifier, 8 A Base cathode 2 TO-220AC 13 Cathode Anode PRODUCT.
The VS-8TQ Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-8TQ060PbF-Vishay.pdf

VS-8TQ100PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-8TQ100PbF, VS-8TQ060PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-8TQ100PbF, VS-8TQ060PbF

Manufacturer:

Vishay ↗

File Size:

172.01 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-8TQ100PbF, VS-8TQ060PbF.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform Range tp = 5 μs sine 8 Apk, TJ = 125 °C Range VALUES 8 60 to 100 850 0.58 - 55 to 175 UNITS A
