VS-90SQ030

Schottky Rectifier

VS-90SQ030 Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and long term reliability

* Co

VS-90SQ030 General Description

The VS-90SQ axial leaded Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switch.

VS-90SQ030 Datasheet (130.07 KB)

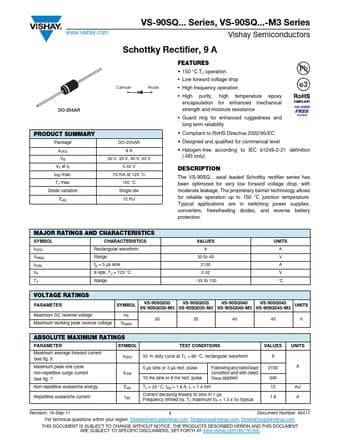

Preview of VS-90SQ030 PDF

Datasheet Details

Part number:

VS-90SQ030

Manufacturer:

Vishay ↗

File Size:

130.07 KB

Description:

Schottky rectifier.
www.vishay.com VS-90SQ Series, VS-90SQ-M3 Series Vishay Semiconductors Schottky Rectifier, 9 A DO-204AR Cathode Anode PRODUCT SUMMARY Package IF.
