VS-GA200TH60S Datasheet, Igbt, Vishay

VS-GA200TH60S Features

  • Igbt
  • High short circuit capability
  • 10 μs short circuit capability
  • VCE(on) with positive temperature coefficient
  • Maximum junction temperature 150 °C

PDF File Details

Part number:

VS-GA200TH60S

Manufacturer:

Vishay ↗

File Size:

130.14kb

Download:

📄 Datasheet

Description:

Igbt. Vishay’s IGBT power module provides ultra low conduction loss as well as short circuit ruggedness. It is designed for applications su

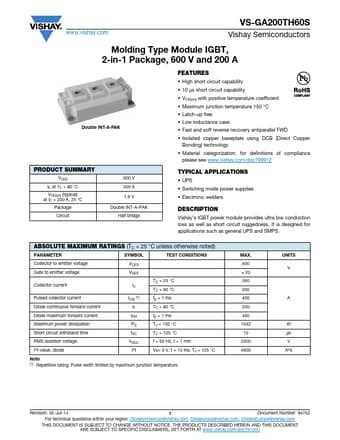

Datasheet Preview: VS-GA200TH60S 📥 Download PDF (130.14kb)
Page 2 of VS-GA200TH60S Page 3 of VS-GA200TH60S

VS-GA200TH60S Application

  • Applications
  • UPS
  • Switching mode power supplies
  • Electronic welders DESCRIPTION Vishay’s IGBT power module provides ultr
