VS-GB100TH120N

Molding Type Module IGBT

VS-GB100TH120N Features

* Low VCE(on) SPT + IGBT technology

* 10 μs short circuit capability

* VCE(on) with positive temperature coefficient

* Maximum junction temperature 150 °C

* Low inductance case

* Fast and soft reverse recovery antiparallel FWD

* Isolated copper

VS-GB100TH120N General Description

Vishay’s IGBT power module provides ultra low conduction loss as well as short circuit ruggedness. It is designed for applications such as general inverters and UPS. ABSOLUTE MAXIMUM RATINGS (TC = 25 °C unless otherwise noted) PARAMETER SYMBOL TEST CONDITIONS Collector to emitter voltage Gate t.

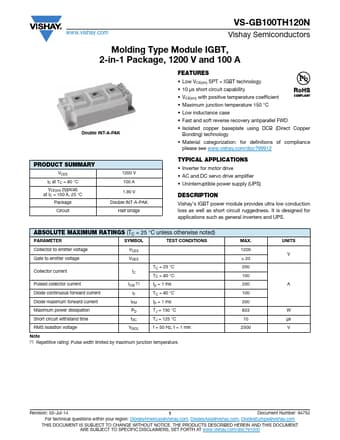

VS-GB100TH120N Datasheet (127.42 KB)

Preview of VS-GB100TH120N PDF

Datasheet Details

Part number:

VS-GB100TH120N

Manufacturer:

Vishay ↗

File Size:

127.42 KB

Description:

Molding type module igbt.
www.vishay.com VS-GB100TH120N Vishay Semiconductors Molding Type Module IGBT, 2-in-1 Package, 1200 V and 100 A Double INT-A-PAK PRODUCT SUMMARY VC.
