VS-GB100TH120U

Molding Type Module IGBT

VS-GB100TH120U Features

* NPT IGBT technology

* 10 μs short circuit capability

* Low switching losses

* Rugged with ultrafast performance

* VCE(on) with positive temperature coefficient

* Low inductance case

* Fast and soft reverse recovery antiparallel FWD

VS-GB100TH120U General Description

Vishay’s IGBT power module provides ultrafast switching speed as well as short circuit ruggedness. It is designed for applications such as electronic welders and inductive heating.  ABSOLUTE MAXIMUM RATINGS (TC = 25 °C unless otherwise noted) PARAMETER SYMBOL TEST CONDITIONS Collector to emit.

VS-GB100TH120U Datasheet (132.09 KB)

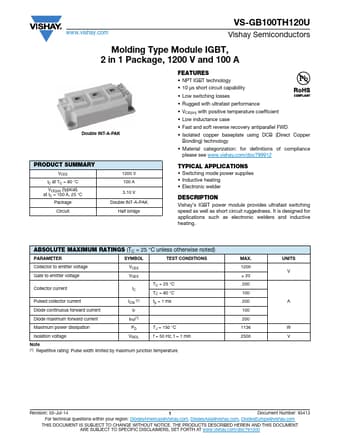

Preview of VS-GB100TH120U PDF
