VS-GB100TS60NPbF Ultrafast Speed IGBT

www.vishay.com VS-GB100TS60NPbF Vishay Semiconductors INT-A-PAK “Half-Bridge” (Ultrafast Speed IGBT), 108 A INT-A-PAK PRODUCT SUMMARY VCES IC DC V.

VS-GB100TS60NPbF-Vishay.pdf

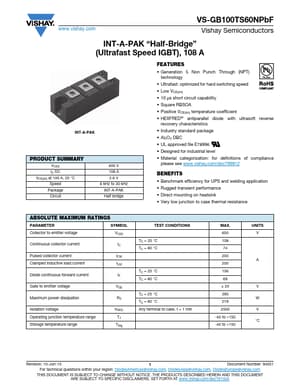

VS-GB100TS60NPbF Datasheet Preview — Preview of VS-GB100TS60NPbF PDF

Datasheet Details

Part number:

VS-GB100TS60NPbF

Manufacturer:

Vishay ↗

File Size:

194.82 KB

Description:

Ultrafast Speed IGBT

Features

* Generation 5 Non Punch Through (NPT) technology
* Ultrafast: optimized for hard switching speed
* Low VCE(on)
* 10 μs short circuit capability
* Square RBSOA
* Positive VCE(on) temperature coefficient
* HEXFRED® antiparallel diode with ultras
