VS-GB55LA120UX

IGBT

VS-GB55LA120UX Features

* NPT Gen 5 IGBT technology

* Square RBSOA

* HEXFRED® clamping diode

* Positive VCE(on) temperature coefficient

* Fully isolated package

* Speed 8 kHz to 60 kHz

* Very low internal inductance ( 5 nH typical)

* Industry standard outline

VS-GB55LA120UX Datasheet (174.95 KB)

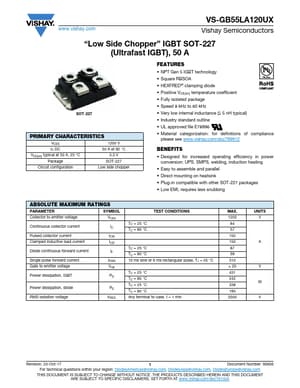

Preview of VS-GB55LA120UX PDF

Datasheet Details

Part number:

VS-GB55LA120UX

Manufacturer:

Vishay ↗

File Size:

174.95 KB

Description:

Igbt.
www.vishay.com VS-GB55LA120UX Vishay Semiconductors “Low Side Chopper” IGBT SOT-227 (Ultrafast IGBT), 50 A SOT-227 PRIMARY CHARACTERISTICS VCES I.
