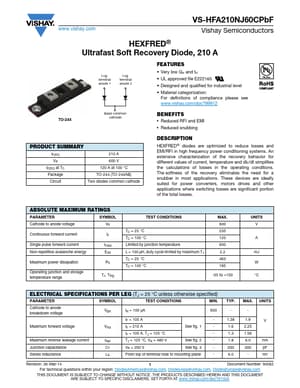

datasheet Preview Page 1 from Datasheet4u.com

VS-HFA210NJ60CPbF Ultrafast Soft Recovery Diode

www.vishay.com VS-HFA210NJ60CPbF Vishay Semiconductors HEXFRED® Ultrafast Soft Recovery Diode, 210 A Lug terminal anode 1 Lug terminal anode 2 FE.
HEXFRED® diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

VS-HFA210NJ60CPbF-Vishay.pdf

VS-HFA210NJ60CPbF Datasheet Preview — Preview of VS-HFA210NJ60CPbF PDF

Datasheet Details

Part number:

VS-HFA210NJ60CPbF

Manufacturer:

Vishay ↗

File Size:

174.24 KB

Description:

Ultrafast Soft Recovery Diode

Features

* Very low Qrr and trr
* UL approved file E222165
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 TO-244 Base common cathode BENEFITS
* Reduced RFI and EMI

Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.  ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL Cathode to anode voltage VR Continuous forward current IF Single pulse forward current N
