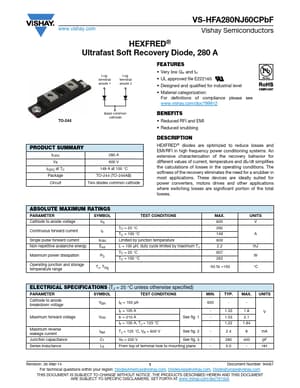

datasheet Preview Page 1 from Datasheet4u.com

VS-HFA280NJ60CPbF Ultrafast Soft Recovery Diode

www.vishay.com VS-HFA280NJ60CPbF Vishay Semiconductors HEXFRED® Ultrafast Soft Recovery Diode, 280 A Lug terminal anode 1 Lug terminal anode 2 FE.
HEXFRED® diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

VS-HFA280NJ60CPbF-Vishay.pdf

VS-HFA280NJ60CPbF Datasheet Preview — Preview of VS-HFA280NJ60CPbF PDF

Datasheet Details

Part number:

VS-HFA280NJ60CPbF

Manufacturer:

Vishay ↗

File Size:

169.96 KB

Description:

Ultrafast Soft Recovery Diode

Features

* Very low Qrr and trr
* UL approved file E222165
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 TO-244 Base common cathode BENEFITS
* Reduced RFI and EMI

Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL Cathode to anode voltage VR Continuous forward current IF Single pulse forward current No
