VS-MBR1535CT-1PbF

Schottky Rectifier

VS-MBR1535CT-1PbF Features

* 150 °C TJ operation

* Center tap TO-220 package

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness an

VS-MBR1535CT-1PbF General Description

The VS-MBR(B)15 center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and.

VS-MBR1535CT-1PbF Datasheet (169.65 KB)

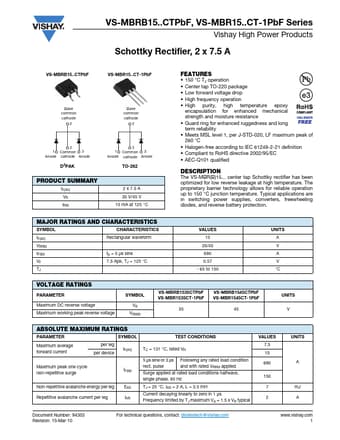

Preview of VS-MBR1535CT-1PbF PDF

Datasheet Details

Part number:

VS-MBR1535CT-1PbF

Manufacturer:

Vishay ↗

File Size:

169.65 KB

Description:

Schottky rectifier.
VS-MBRB15..CTPbF, VS-MBR15..CT-1PbF Series Vishay High Power Products Schottky Rectifier, 2 x 7.5 A VS-MBRB15..CTPbF VS-MBR15..CT-1PbF Base common .
