VS-MBR1635-N3, VS-MBR1635PbF, Schottky Rectifier

VS-MBR16PbF Series, VS-MBR16-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 16 A .
The VS-MBR16 Schottky rectifier has been optimized for low reverse leakage at high temperature.

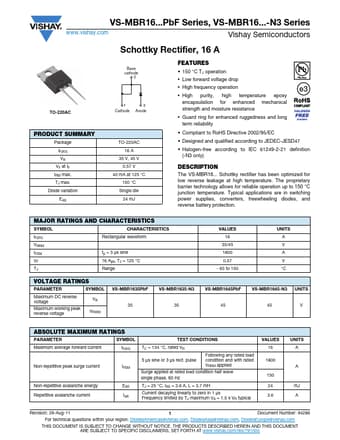

datasheet Preview Page 1 from Datasheet4u.com

VS-MBR1635PbF-Vishay.pdf

VS-MBR1635-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR1635-N3, VS-MBR1635PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-MBR1635-N3, VS-MBR1635PbF

Manufacturer:

Vishay ↗

File Size:

146.83 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-MBR1635-N3, VS-MBR1635PbF.
Please refer to the document for exact specifications by model.

Features

* Base cathode 2
* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliabil

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 μs sine 16 Apk, TJ = 125 °C Range CHARACTERISTICS Rectangular waveform VALUES 16 35/45 1800 0.57 - 65 to 150 UNITS A V A V °C VOL
