VS-MBR350-M3, VS-MBR350, Schottky Rectifier

VS-MBR350, VS-MBR350-M3, VS-MBR360, VS-MBR360-M3 www.vishay.com Vishay Semiconductors Schottky Rectifier, 3 A .
The VS-MBR350, VS-MBR350 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

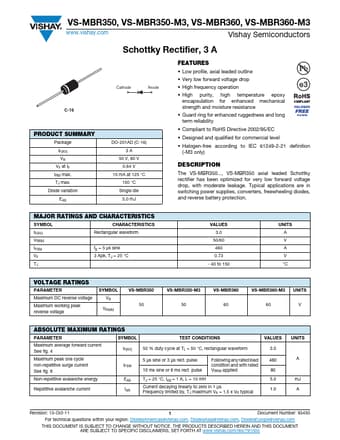

datasheet Preview Page 1 from Datasheet4u.com

VS-MBR350-Vishay.pdf

VS-MBR350-M3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR350-M3, VS-MBR350. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-MBR350-M3, VS-MBR350

Manufacturer:

Vishay ↗

File Size:

114.65 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-MBR350-M3, VS-MBR350.
Please refer to the document for exact specifications by model.

Features

* Low profile, axial leaded outline
* Very low forward voltage drop Cathode Anode
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 μs sine 3 Apk, TJ = 25 °C CHARACTERISTICS Rectangular waveform VALUES 3.0 50/60 460 0.73 - 40 to 150 UNITS A V A V °C VOLTAGE RAT
