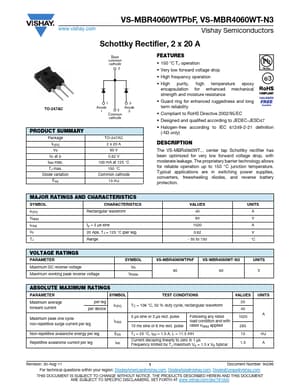

VS-MBR4060WTPbF Schottky Rectifier

www.vishay.com VS-MBR4060WTPbF, VS-MBR4060WT-N3 Vishay Semiconductors Schottky Rectifier, 2 x 20 A Base common cathode 2 TO-247AC PRODUCT SUMMARY .
The VS-MBR4060WT center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-MBR4060WTPbF-Vishay.pdf

VS-MBR4060WTPbF Datasheet Preview — Preview of VS-MBR4060WTPbF PDF

Datasheet Details

Part number:

VS-MBR4060WTPbF

Manufacturer:

Vishay ↗

File Size:

163.68 KB

Description:

Schottky Rectifier

Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 20 Apk, TJ = 125 °C (per leg) Range VALUES 40 60 1020 0.62 - 55 to 150 UNITS A
