VS-MBRB2535CTPbF

Schottky Rectifier

VS-MBRB2535CTPbF Features

* 150 °C TJ operation

* Center tap D2PAK and TO-262 packages

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ru

VS-MBRB2535CTPbF General Description

This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse ba.

VS-MBRB2535CTPbF Datasheet (169.42 KB)

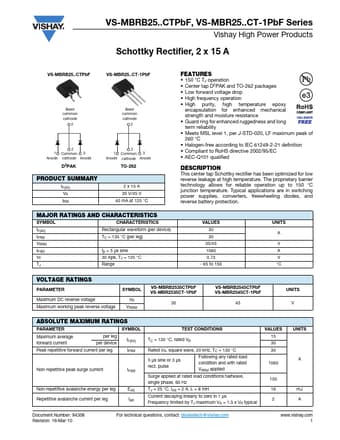

Preview of VS-MBRB2535CTPbF PDF

Datasheet Details

Part number:

VS-MBRB2535CTPbF

Manufacturer:

Vishay ↗

File Size:

169.42 KB

Description:

Schottky rectifier.
VS-MBRB25..CTPbF, VS-MBR25..CT-1PbF Series Vishay High Power Products Schottky Rectifier, 2 x 15 A VS-MBRB25..CTPbF VS-MBR25..CT-1PbF Base common c.
