VS-MBRS190TRPbF Datasheet - Vishay

Schottky Rectifier

VS-MBRS190TRPbF Features

* Small foot print, surface mountable

* Low forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

* Compliant to RoHS directive 2002/

VS-MBRS190TRPbF General Description

The VS-MBRS190TRPbF, VS-MBRS1100TRPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reve.

VS-MBRS190TRPbF Datasheet (104.99 KB)

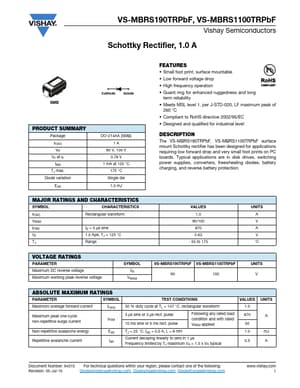

Preview of VS-MBRS190TRPbF PDF

Datasheet Details

Part number:

VS-MBRS190TRPbF

Manufacturer:

Vishay ↗

File Size:

104.99 KB

Description:

Schottky rectifier.
VS-MBRS190TRPbF, VS-MBRS1100TRPbF Vishay Semiconductors Schottky Rectifier, 1.0 A SMB Cathode Anode PRODUCT SUMMARY Package IF(AV) VR VF at IF IRM .
