VS-MUR1520PbF - Ultrafast Rectifier

Name: VS-MUR1520PbF
SKU: VS-MUR1520PbF-990802

Vishay

📥 Download Datasheet

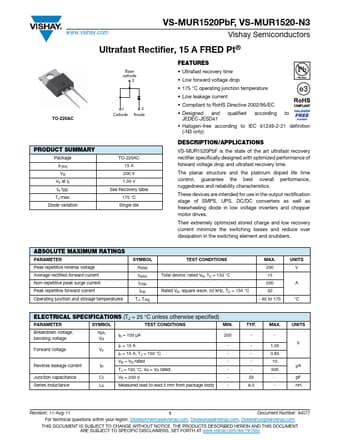

VS-MUR1520PbF Datasheet Preview — Preview of VS-MUR1520PbF PDF

Datasheet Details

Part number	VS-MUR1520PbF
Manufacturer	Vishay
File Size	155.73 KB
Description	Ultrafast Rectifier
Datasheet	VS-MUR1520PbF-Vishay.pdf

VS-MUR1520PbF Product details

Description

APPLICATIONS VS-MUR1520PbF is the state of the art ultrafast recovery rectifier specifically designed with optimized performance of forward voltage drop and ultrafast recovery time.

Features

Ultrafast recovery time.
Low forward voltage drop.
175 °C operating junction temperature.
Low leakage current.
Compliant to RoHS Directive 2002/95/EC.
Designed and qualified according to JEDEC-JESD47.
Halogen-free according to IEC 61249-2-21 definition (-N3 only).
