VS-MURB1520-1-M3, VS-MURB1520-M3 Ultrafast Rectifier

VS-MURB1520-1-M3 Description

www.vishay.com VS-MURB1520-M3, VS-MURB1520-1-M3 Vishay Semiconductors Ultrafast Rectifier, 15 A FRED Pt® 2 3 1 D2PAK (TO-263AB) Base cathode 2 3 2.
/ APPLICATIONS MUR.

VS-MURB1520-1-M3 Features

* Ultrafast recovery time
* Low forward voltage drop
* Low leakage current
* 175 °C operating junction temperature
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
* Material categorization: for definitions of compliance please see www. vis

VS-MURB1520-1-M3 Applications

* MUR. . series are the state of the art ultrafast recovery rectifiers specifically designed with optimized performance of forward voltage drop and ultrafast recovery time.  The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-MURB1520-1-M3, VS-MURB1520-M3. Please refer to the document for exact specifications by model.

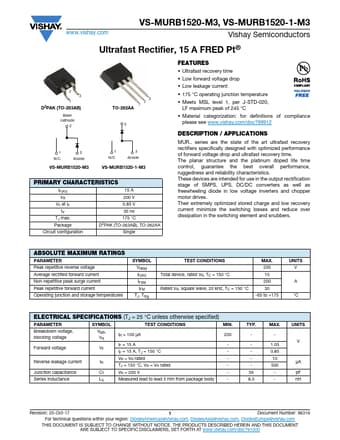

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-MURB1520-1-M3, VS-MURB1520-M3
Manufacturer
Vishay ↗
File Size
198.51 KB
Datasheet
VS-MURB1520-M3-Vishay.pdf
Description
Ultrafast Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-MURB1520-1-M3, VS-MURB1520-M3.
Please refer to the document for exact specifications by model.
