VS-SD1053C25S20L - Fast Recovery Diodes

This page provides the datasheet information for the VS-SD1053C25S20L, a member of the VS-SD1053C18S20L Fast Recovery Diodes family.

Datasheet Summary

Features

  • High power fast recovery diode series.
  • 2.0 µs to 3.0 µs recovery time.
  • High voltage ratings up to 3000 V.
  • High current capability.
  • Optimized turn-on and turn-off characteristics.
  • Low forward recovery.
  • Fast and soft reverse recovery.
  • Press PUK encapsulation.
  • Case style conform to JEDEC® DO-200AB (B-PUK).
  • Maximum junction temperature 150 °C.
  • Designed and qualified for industrial level.
  • Mate.

📥 Download Datasheet

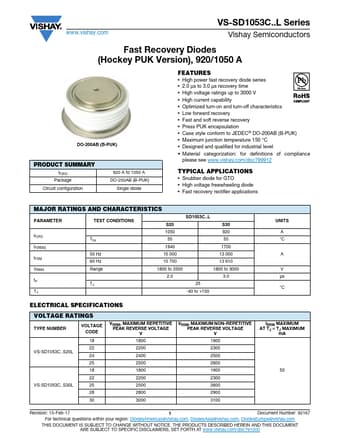

Datasheet preview – VS-SD1053C25S20L

Datasheet Details

Part number VS-SD1053C25S20L
Manufacturer Vishay
File Size 470.26 KB
Description Fast Recovery Diodes
Datasheet download datasheet VS-SD1053C25S20L Datasheet
Additional preview pages of the VS-SD1053C25S20L datasheet.

📁 Similar Datasheet

Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com VS-SD1053C..L Series Vishay Semiconductors Fast Recovery Diodes (Hockey PUK Version), 920/1050 A DO-200AB (B-PUK) PRODUCT SUMMARY IF(AV) Package Circuit configuration 920 A to 1050 A DO-200AB (B-PUK) Single diode FEATURES • High power fast recovery diode series • 2.0 µs to 3.0 µs recovery time • High voltage ratings up to 3000 V • High current capability • Optimized turn-on and turn-off characteristics • Low forward recovery • Fast and soft reverse recovery • Press PUK encapsulation • Case style conform to JEDEC® DO-200AB (B-PUK) • Maximum junction temperature 150 °C • Designed and qualified for industrial level • Material categorization: for definitions of compliance please see www.vishay.
