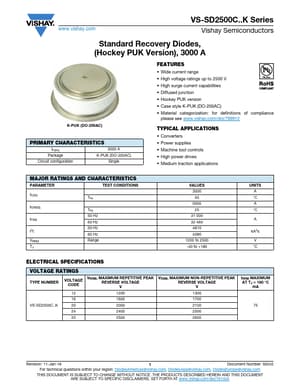

datasheet Preview Page 1 from Datasheet4u.com

VS-SD2500C24K, VS-SD2500C12K Standard Recovery Diodes

www.vishay.com VS-SD2500C..K Series Vishay Semiconductors Standard Recovery Diodes, (Hockey PUK Version), 3000 A K-PUK (DO-200AC) PRIMARY CHARACTE.

VS-SD2500C12K-Vishay.pdf

VS-SD2500C24K Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-SD2500C24K, VS-SD2500C12K. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-SD2500C24K, VS-SD2500C12K

Manufacturer:

Vishay ↗

File Size:

165.46 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VS-SD2500C24K, VS-SD2500C12K.
Please refer to the document for exact specifications by model.

Features

* Wide current range
* High voltage ratings up to 2500 V
* High surge current capabilities
* Diffused junction
* Hockey PUK version
* Case style K-PUK (DO-200AC)
* Material categorization: for definitions of compliance please see www. vishay. com

Applications

* Converters
* Power supplies
* Machine tool controls
* High power drives
* Medium traction applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) Ths IF(RMS) IFSM I2t VRRM TJ Ths 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 3000 55 50
