VS-SD1053C18S20L - Fast Recovery Diodes

Vishay

📥 Download Datasheet

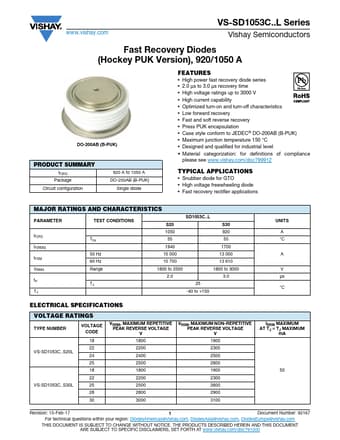

VS-SD1053C18S20L Datasheet Preview — Preview of VS-SD1053C18S20L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VS-SD1053C18S20L
Manufacturer	Vishay ↗
File Size	470.26 KB
Description	Fast Recovery Diodes
Datasheet	VS-SD1053C18S20L-Vishay.pdf

VS-SD1053C18S20L Product details

Features

High power fast recovery diode series.
2.0 µs to 3.0 µs recovery time.
High voltage ratings up to 3000 V.
High current capability.
Optimized turn-on and turn-off characteristics.
Low forward recovery.
Fast and soft reverse recovery.
Press PUK encapsulation.
Case style conform to JEDEC® DO-200AB (B-PUK).
Maximum junction temperature 150 °C.
Designed and qualified for industrial level.
Mate.
