VS-SD700C40L, VS-SD700C30L, Standard Recovery Diodes

www.vishay.com VS-SD700C..L Series Vishay Semiconductors Standard Recovery Diodes, (Hockey PUK Version), 700 A B-PUK (DO-200AB) PRIMARY CHARACTERI.

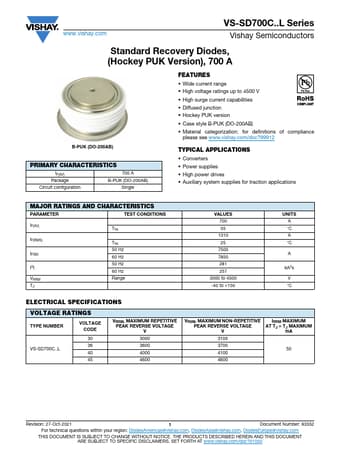

datasheet Preview Page 1 from Datasheet4u.com

VS-SD700C30L-Vishay.pdf

VS-SD700C40L Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-SD700C40L, VS-SD700C30L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-SD700C40L, VS-SD700C30L

Manufacturer:

Vishay ↗

File Size:

180.44 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VS-SD700C40L, VS-SD700C30L.
Please refer to the document for exact specifications by model.

Features

* Wide current range
* High voltage ratings up to 4500 V
* High surge current capabilities
* Diffused junction
* Hockey PUK version
* Case style B-PUK (DO-200AB)
* Material categorization: for definitions of compliance please see www. vishay. com

Applications

* Converters
* Power supplies
* High power drives
* Auxiliary system supplies for traction applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) Ths IF(RMS) IFSM I2t VRRM TJ Ths 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 700 55 1310 25 7500
