VS-UFB201FA40

Insulated Ultrafast Rectifier Module

VS-UFB201FA40 Features

* Two fully independent diodes

* Fully insulated package

* Ultrafast, soft reverse recovery, with high junction temperature (TJ max. = 175 °C)

* Low forward voltage drop Available

* Optimized for power conversion: welding and industrial SMPS applications

VS-UFB201FA40 General Description

The VS-UFB201FA40 insulated modules integrate two state of the art ultrafast recovery rectifiers in the compact, industry standard SOT-227 package. The diodes structure, and its life time control, provide an ultrasoft recovery current shape, together with the best overall performance, ruggedness and.

VS-UFB201FA40 Datasheet (137.58 KB)

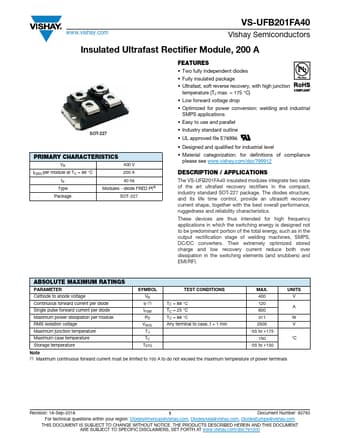

Preview of VS-UFB201FA40 PDF

Datasheet Details

Part number:

VS-UFB201FA40

Manufacturer:

Vishay ↗

File Size:

137.58 KB

Description:

Insulated ultrafast rectifier module.
www.vishay.com VS-UFB201FA40 Vishay Semiconductors Insulated Ultrafast Rectifier Module, 200 A SOT-227 PRODUCT SUMMARY VR IF(AV) per module at TC .
