VS-VSKCS209-150 Schottky Rectifier

VS-VSKCS209-150 Description

www.vishay.com VS-VSKCS209/150 Vishay Semiconductors AAP Gen 7 (TO-240AA) Power Modules Schottky Rectifier, 200 A AAP Gen 7 (TO-240AA) PRIMARY CHA.
The AAP Gen 7, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct bonded copper s.

VS-VSKCS209-150 Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: for definitions of compliance please see www

VS-VSKCS209-150 Applications

* The VS-VSKCS209.. Schottky rectifier common cathode has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature.  Typical applications are in high current switching power supplies, plating power s

📥 Download Datasheet

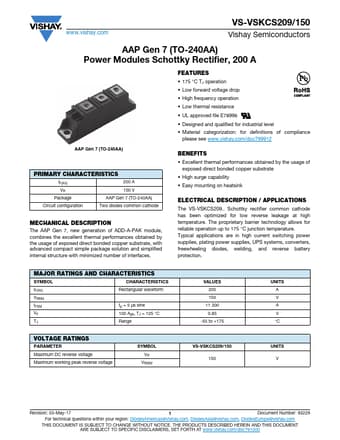

Preview of VS-VSKCS209-150 PDF
datasheet Preview Page 2 datasheet Preview Page 3
