VS-VSKCS220-030 Power Modules Schottky Rectifier

VS-VSKCS220-030 Description

www.vishay.com VS-VSKCS220/030 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 220 A ADD-A-PAK PRODUCT SUMMARY I.
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.

VS-VSKCS220-030 Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www

VS-VSKCS220-030 Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 110 Apk, TJ = 125 °C

📥 Download Datasheet

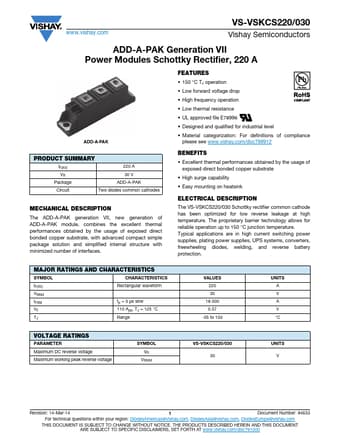

Preview of VS-VSKCS220-030 PDF
datasheet Preview Page 2 datasheet Preview Page 3
