VS-VSKJ320-04PBF, VS-VSKC320-20PBF, Standard Recovery Diodes

VS-VSK.250PbF, VS-VSK.270PbF, VS-VSK.320PbF Series www.vishay.com Vishay Semiconductors Standard Recovery Diodes, 250 A to 320 A (MAGN-A-PAK Power .
This new VS-VSK series of MAGN-A-PAKs uses high voltage power diodes in two basic configurations.

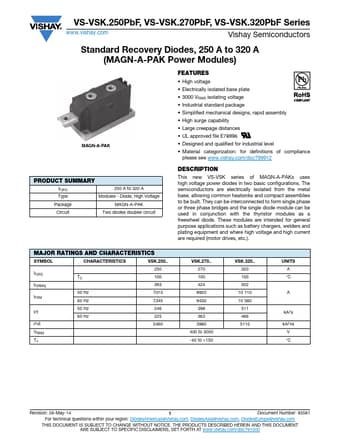

datasheet Preview Page 1 from Datasheet4u.com

VS-VSKC320-20PBF-Vishay.pdf

VS-VSKJ320-04PBF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-VSKJ320-04PBF, VS-VSKC320-20PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-VSKJ320-04PBF, VS-VSKC320-20PBF

Manufacturer:

Vishay ↗

File Size:

326.02 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VS-VSKJ320-04PBF, VS-VSKC320-20PBF.
Please refer to the document for exact specifications by model.

Features

* High voltage
* Electrically isolated base plate
* 3000 VRMS isolating voltage
* Industrial standard package
* Simplified mechanical designs, rapid assembly
* High surge capability
* Large creepage distances
* UL approved file E78996

Applications

* such as battery chargers, welders and plating equipment and where high voltage and high current are required (motor drives, etc. ). MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS VSK.250.. IF(AV) IF(RMS) IFSM TC 50 Hz 60 Hz 250 100 393 7015 7345 50 Hz I2t 60 Hz 246 225 I2t 2460
