VS-VSKJ320-12PBF Datasheet - Vishay

Standard Recovery Diodes

VS-VSKJ320-12PBF Features

* High voltage

* Electrically isolated base plate

* 3000 VRMS isolating voltage

* Industrial standard package

* Simplified mechanical designs, rapid assembly

* High surge capability

* Large creepage distances

* UL approved file E78996

VS-VSKJ320-12PBF General Description

This new VS-VSK series of MAGN-A-PAKs uses high voltage power diodes in two basic configurations. The semiconductors are electrically isolated from the metal base, allowing common heatsinks and compact assemblies to be built. They can be interconnected to form single phase or three phase bridges and.

VS-VSKJ320-12PBF Datasheet (326.02 KB)

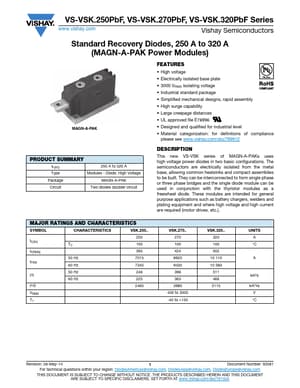

Preview of VS-VSKJ320-12PBF PDF

Datasheet Details

Part number:

VS-VSKJ320-12PBF

Manufacturer:

Vishay ↗

File Size:

326.02 KB

Description:

Standard recovery diodes.
VS-VSK.250PbF, VS-VSK.270PbF, VS-VSK.320PbF Series www.vishay.com Vishay Semiconductors Standard Recovery Diodes, 250 A to 320 A (MAGN-A-PAK Power .
