Z3020414

The Z3020414 is Wirewound Resistors designed by Vishay.

Product Overview

Vishay

📥 Download Datasheet

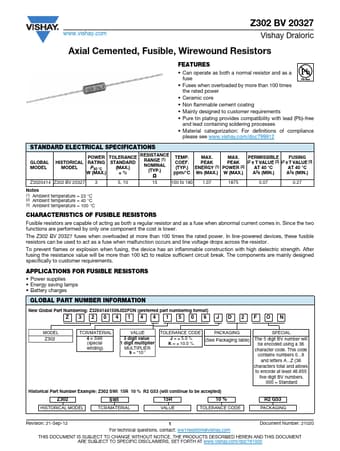

Z3020414 Wirewound Resistors by Vishay - Datasheet Preview — Datasheet preview – Z3020414

Datasheet Details

Part number	Z3020414
Manufacturer	Vishay
File Size	87.00 KB
Description	Wirewound Resistors
Datasheet	Z3020414-Vishay.pdf
Additional preview pages of the Z3020414 datasheet.

Product details

Features

Can operate as both a normal resistor and as a fuse.
Fuses when overloaded by more than 100 times the rated power.
Ceramic core.
Non flammable cement coating.
Mainly designed to customer requirements.
Pure tin plating provides compatibility with lead (Pb)-free and lead containing soldering processes.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
