The VSC9180 is a multi-rate SONET/SDH transceiver with support for working and protection hitless backplane 1+1 protection.

It is designed to serialize four STS-12/STM4 signals, or byte interleaved SONET/SDH data from 4-bit 622MHz or 16-bit 155MHz parallel buses onto redundant 2.5Gb/s serial backpl

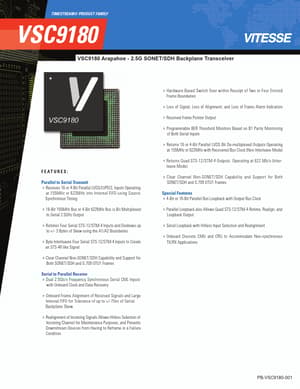

TIMESTREAM® PRODUCT FAMILY VSC9180 VSC9180 Arapahoe - 2.5G SONET/SDH Backplane Transceiver 4Hardware Based Switch Over within Receipt of Two or Four Errored Frame Boundaries 4Loss of Signal, Loss of Alignment, and Loss of Frame Alarm Indication 4Received Frame Pointer Output 4Programmable BER Threshold Monitors Based on B1 Parity Monitoring of Both Serial Inputs 4Returns 16 or 4-Bit Parallel LVDS Bit De-multiplexed Outputs Operating at 155MHz or 622MHz with Recovered Bus Clock (Non Interleave M

VSC9180 Features

* 44-Bit or 16-Bit Parallel Bus Loopback with Output Bus Clock 4Parallel Loopback also Allows Quad STS-12/STM-4 Retime, Realign, and Loopback Output 4Serial Loopback with Hitless Input Selection and Realignment 4Onboard Discrete CMU and CRU to Accommodate Non-synchronous TX/RX Applications F E AT U R
