VSC9182 Datasheet - Vitesse Semiconductor

VSC9182 Telecomm / Datacomm

The VSC9182 is a 64x64 STS-12/STM-4 Time Slot Interchange Switch IC. A single device provides 40Gb/s of non-blocking STS-1 connectivity (768x768 STS-1) with support for concatenated tributaries. All STS-12/STM-4 inputs and outputs are differential serial signals running at 622 Mb/s for efficiency i.

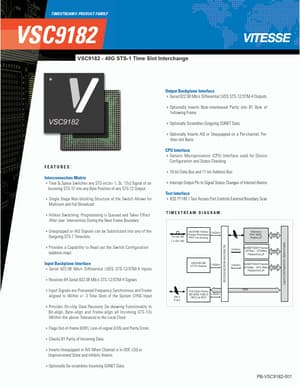

PHYSICAL LAYER PRODUCT TIMESTREAM® PRODUCT FAMILY VSC9182 VSC9182 - 40G STS-1 Time Slot Interchange Output Backplane Interface !Serial 622.08 Mb/s Differential LVDS STS-12/STM-4 Outputs !Optionally Inserts Byte-interleaved Parity into B1 Byte of Following Frame !Optionally Scrambles Outgoing SONET Data !Optionally Inserts AIS or Unequipped on a Per-channel, Pertime-slot Basis CPU Interface !Generic Microprocessor (CPU) Interface used for Device Configuration and Status Checking F E AT U R E S :.
