VSC8224

Quad Port 10/100/1000 Base-T PHY

VSC8224 Features

* functions, performance, technical specifications and availability, is subject to change without notice at any time. TRST 741 Calle Plano Camarillo, CA 93012, USA Tel: +1 805.388.3700 Fax: +1 805.987.5896 www.vitesse.com

VSC8224 General Description

The VSC8224 is the industry’s smallest, lowest power quad port Gigabit Ethernet transceiver and is ideal for multi-port switch and router applications. In 1000BASE-T mode, the VSC8224’s power consumption is 30% lower than the next best competitor. In RGMII-to-SerDes applications, its best-inclass p.

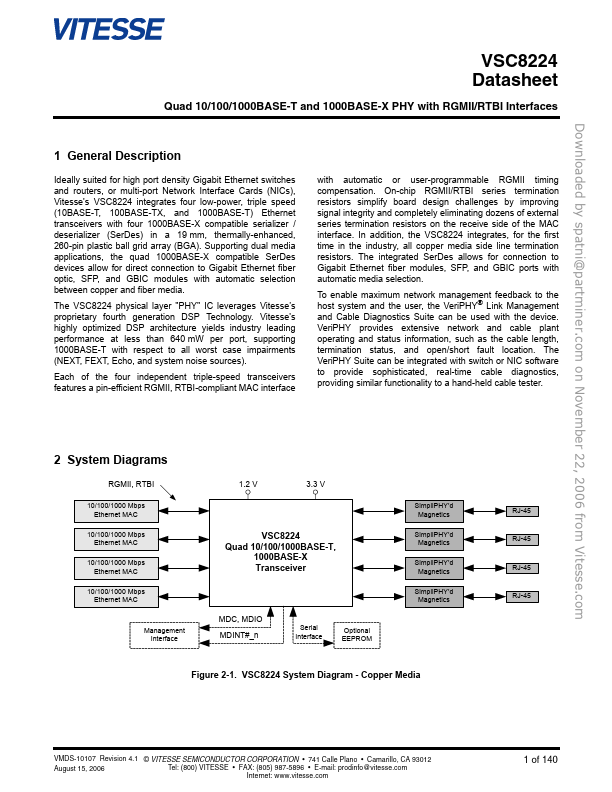

VSC8224 Datasheet (435.24 KB)

Preview of VSC8224 PDF

Datasheet Details

Part number:

VSC8224

Manufacturer:

Vitesse

File Size:

435.24 KB

Description:

Quad port 10/100/1000 base-t phy.
ETHERNET PRODUCTS VSC8224 Quad Port 10/100/1000BASE-T and 1000BASE-X PHY with RGMII and RTBI MAC Interfaces Copper + Optical Media (RGMII to SerDes) .

📁 Related Datasheet

VSC8221 - Single Port 10/100/1000BASE-T PHY (Vitesse Semiconductor)
ETHERNET PRODUCTS VSC8221 .. Single Port 10/100/1000BASE-T PHY with 1.25 Gbps SerDes / SGMII for SFPs / GBICs SFP/GBIC Serial Inte.

VSC8222 - (VSC8223) Multi-Rate SONET/SDH / Fibre Channel and Gigabit Rthernet CDR (Vitesse)
PHYSICAL LAYER PRODUCTS VSC8222 VSC8223 Multi-rate SONET/SDH, Fibre Channel, and Gigabit Ethernet CDR F E AT U R E S : Multi Rate Operation: - OC-48.

VSC8223 - Multi-Rate SONET/SDH / Fibre Channel and Gigabit Rthernet CDR (Vitesse)
PHYSICAL LAYER PRODUCTS VSC8222 VSC8223 Multi-rate SONET/SDH, Fibre Channel, and Gigabit Ethernet CDR F E AT U R E S : Multi Rate Operation: - OC-48.

VSC8228 - Dual Channel Multirate Signal Conditioner and Retimer (Vitesse Semiconductor)
TRANSPORT PRODUCTS VSC8228 .. Dual Channel Multirate Signal Conditioner and Retimer BENEFITS: 4Provides Fibre Channel and Gigabit .

VSC8201 - PCB Design and Layout Guide (Vitesse)
SimpliPHY® VSC8201 PCB Design and Layout Guide Single Port 10/100/1000BASE-Tand 1000BASE-X PHY Introduction This purpose of this application note in .

VSC8204 - Quad Port 10/100/1000 Base-T PHY (Vitesse)
ETHERNET PRODUCTS VSC8204 Quad Port 10/100/1000BASE-T PHY with R/GMII, R/TBI Interfaces 10/100/1000 Ethernet MAC 10/100/1000 Ethernet MAC 10/100/1000.

VSC8211 - Single Port 10/100/1000BASE-T / 1000BASE-X / 100BASE-FX PHY (Vitesse)
VSC8211 Datasheet Single Port 10/100/1000BASE-T, 1000BASE-X, and 100BASE-FX PHY 1 General Description Ideally suited for Gigabit uplinks on Fast Ethe.

VSC8234 - Quad Port 10/100/1000 Base-T PHY (Vitesse)
ETHERNET PRODUCTS VSC8234 10/100/1000BASE-T PHY with SGMII and SerDes MAC Interfaces Copper Media 10/100/1000 Mbps Ethernet MAC 10/100/1000 Mbps Ethe.

TAGS

VSC8224 Quad Port 100 1000 Base-T PHY Vitesse

Image Gallery

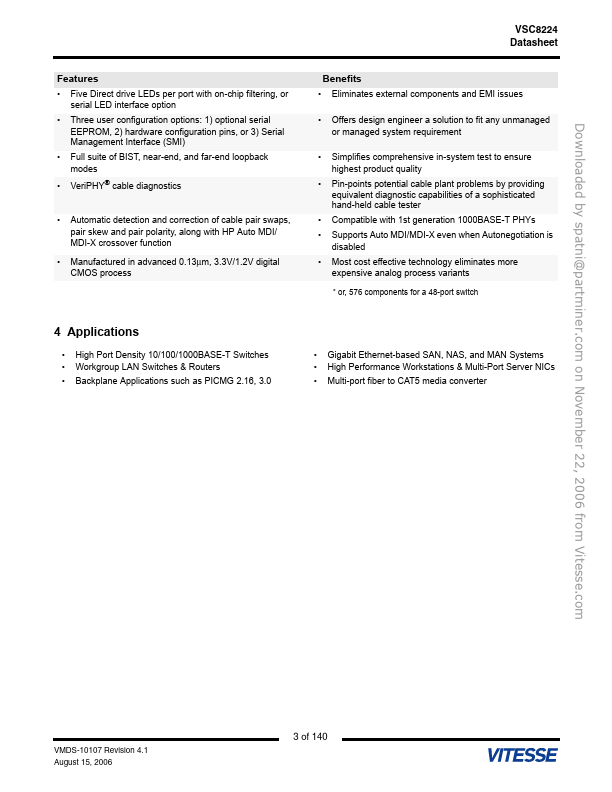

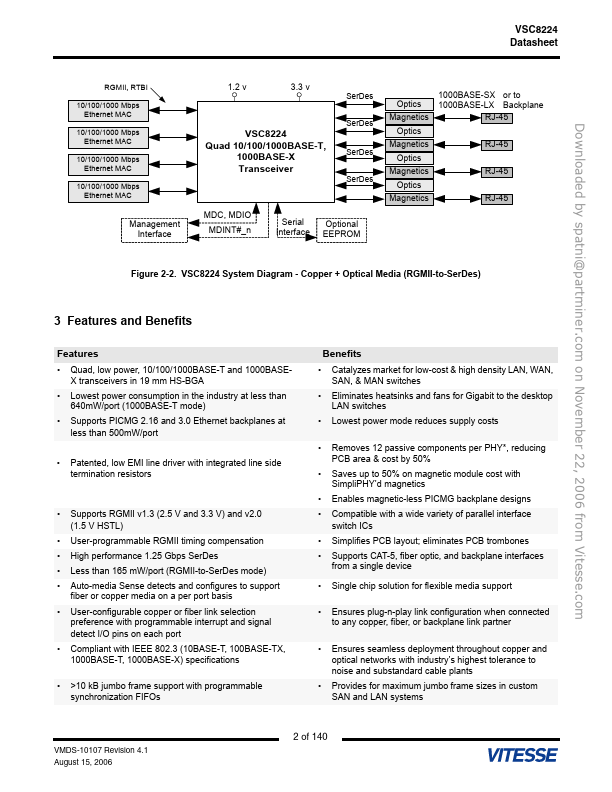

VSC8224 Datasheet Preview Page 2
