VSC8221 Single Port 10/100/1000BASE-T PHY

The VSC8221 is the smallest, lowest power Gigabit Ethernet over copper PHY available and is ideal for SFP/GBIC and Media Converter applications. It is the only triple speed copper SFP PHY to meet the stringent MSA power consumption requirement of <1W for the entire module. Its integrated switching .

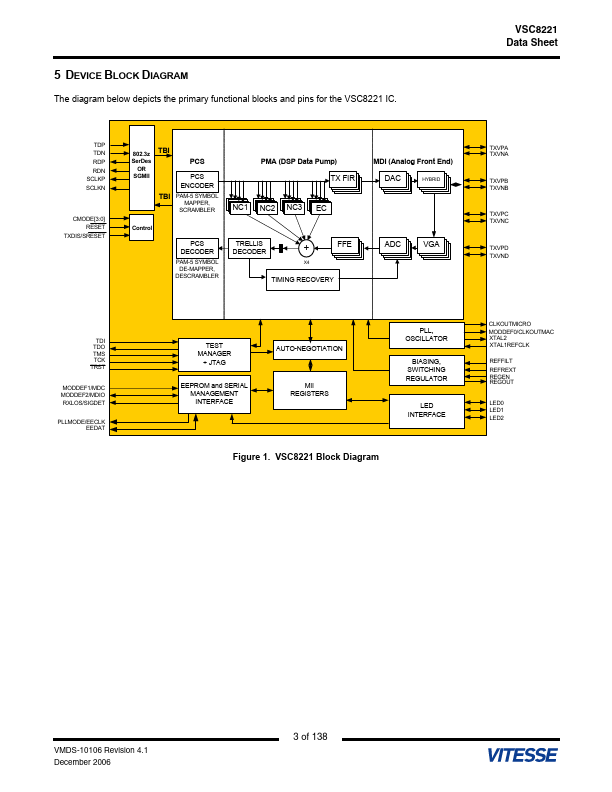

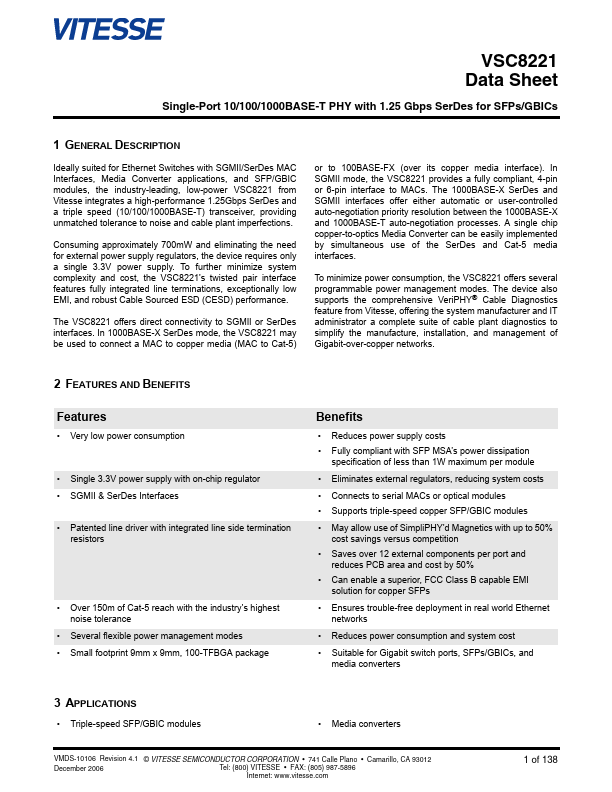

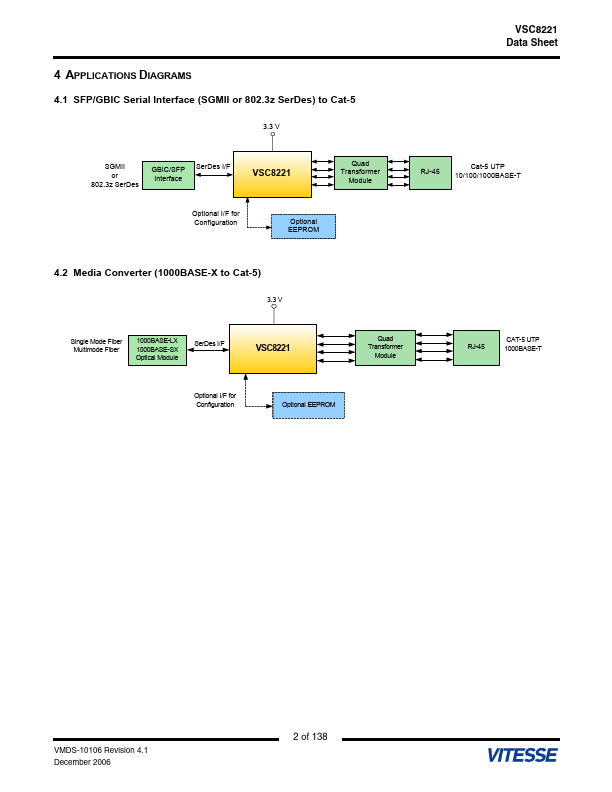

ETHERNET PRODUCTS VSC8221 www.DataSheet4U.com Single Port 10/100/1000BASE-T PHY with 1.25 Gbps SerDes / SGMII for SFPs / GBICs SFP/GBIC Serial Interface (SGMII or 802.3z SerDes) to Cat-5 3.3v SGMII OR 802.3z SerDes GBIC/SFP Interface SerDes I/F Vitesse VSC8221 10/100/1000BASE-T Transceiver Quad Transformer Module RJ-45 Cat-5 UTP 10/100/1000BASE-T Optional I/F for Configuration Optional EEPROM F E AT U R E S : Very Low Power Consumption at < 700mW Single 3.3V Power Supply with On-c.

VSC8221 Features
